gelandangan Super Member
Joined: May 07, 2006 Posts: 6397 Location: Sydney Australia
|
Posted: Sun Jan 13, 2008 5:29 pm Post subject: Re: Fixed my shot Chrony |
|
The 10mm plate is NOT to protect it from direct shot. Only for debris.
If you directly shot your chrony, then you deserve to pay for a new one
_________________ A straight line is the shortest distance between two points.
A smile is the shortest distance between two people.
Do - Not try!
gelandangan.weebly.com/ |
|
Back to top |
|
|
Dimitri Super Member
Joined: Nov 25, 2005 Posts: 5944
|
Posted: Sun Jan 13, 2008 5:46 pm Post subject: Re: Fixed my shot Chrony |
|
I wonder how much armour I'd need to use for my M1A with AP rounds to protect a Chrony.
Dimitri
_________________ A thousand hills, but no birds in flight, ten thousand paths, with no people's tracks. A lonely boat, a straw-hatted old man, fishing alone in the cold river snow. |
|
Back to top |
|
|
gelandangan Super Member
Joined: May 07, 2006 Posts: 6397 Location: Sydney Australia
|
|
Back to top |
|
|
SwampFox Super Member
Joined: Jul 15, 2005 Posts: 1040 Location: Destin, Florida
|
Posted: Mon Jan 14, 2008 9:16 am Post subject: Re: Fixed my shot Chrony |
|
D,
The best idea is not to shoot the darn thing. But, do get yourself a untit with the guts on the bench, just in case.
Ed
_________________ The inherent vice of capitalism is the unequal sharing of the blessings. The inherent blessing of socialism is the equal sharing of misery.
-Winston Churchill |
|
Back to top |
|
|
PaulS Super Member
Joined: Feb 18, 2006 Posts: 4330 Location: South-Eastern Washington - the State
|
|
Back to top |
|
|
grey_ghost Rookie Member
Joined: Apr 07, 2013 Posts: 2
|
Posted: Mon Apr 08, 2013 2:26 am Post subject: Re: Fixed my shot Chrony |
|
gelandangan wrote: |
Well.. after two weeks I found some time to fix my shot Chrony.
It wasn't damaged as bad as I think.
I will gradually make modification to shot proof it later. |

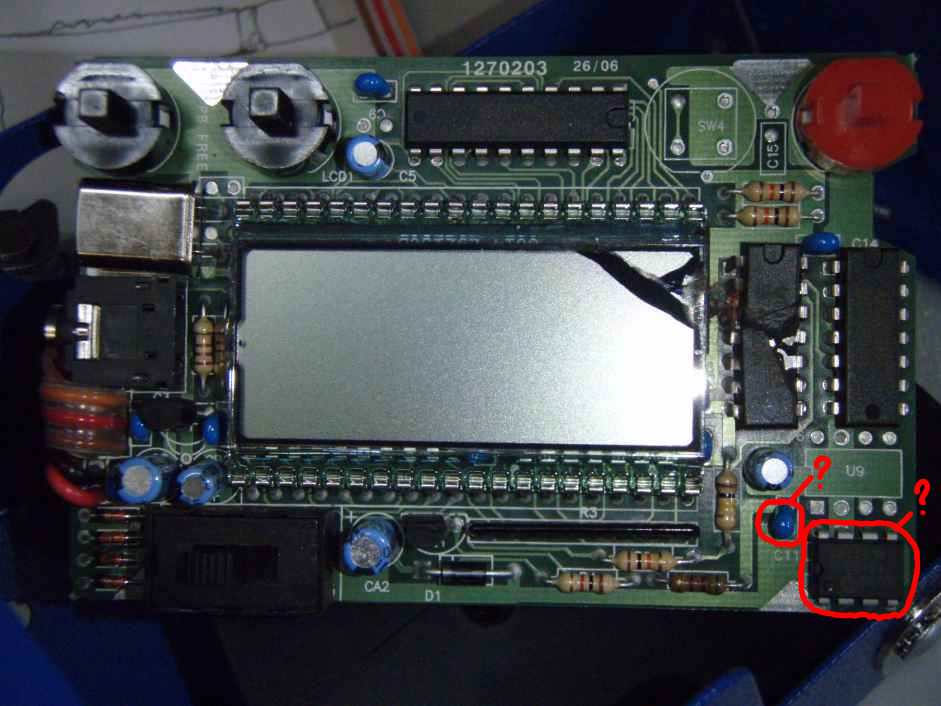

I have two questions about componetns located at PCB of Shooting Chrony Betta.
What marking has chip located at right bottom corner of PCB ?
What marking has capacitor located near this chip (top left corner of chip) ?
Description: |
|
Filesize: |
106.34 KB |
Viewed: |
7381 Time(s) |
|
|
|
Back to top |
|
|
gelandangan Super Member
Joined: May 07, 2006 Posts: 6397 Location: Sydney Australia
|
Posted: Mon Apr 08, 2013 3:56 am Post subject: Re: Fixed my shot Chrony |
|
Welcome.
The chip as far as I remember is an EEPROM from Microchip, I think it is an I2C variant.
The blue capacitor is a standard decoupling, 100nF for it.
IMO, you do not need this EEPROM if you are not using it for shot memory,
OTOH if the uC pinsg and waits for it to respond, it may hang the system altogether.
If you do need it, IMO, any I2C EEPROM from Microchip would do since it usually have the same pinout.
_________________ A straight line is the shortest distance between two points.
A smile is the shortest distance between two people.
Do - Not try!
gelandangan.weebly.com/ |
|
Back to top |
|
|
Vince Site Admin
Joined: May 25, 2005 Posts: 15715 Location: Brisbane AUSTRALIA
|
|
Back to top |
|
|
TRBLSHTR Super Member
Joined: Mar 23, 2007 Posts: 1071 Location: Lower 48's-left coast(near portlandia)
|
|
Back to top |
|
|
grey_ghost Rookie Member
Joined: Apr 07, 2013 Posts: 2
|
Posted: Mon Apr 08, 2013 10:04 am Post subject: Re: Fixed my shot Chrony |
|
Thanks.
gelandangan wrote: |
The chip as far as I remember is an EEPROM from Microchip, I think it is an I2C variant.
|
Can you lookup at exact marking ? Memory capacity is still unknown.
gelandangan wrote: |
The blue capacitor is a standard decoupling, 100nF for it.
|
Marking is 104 (10 * 10000 pF).
gelandangan wrote: |
IMO, you do not need this EEPROM if you are not using it for shot memory, ...
|
EEPROM can be used as storage for device configuration.
|
|
Back to top |
|
|
Bushmaster Super Member
Joined: Jun 12, 2005 Posts: 11391 Location: Ava, Missouri
|
Posted: Mon Apr 08, 2013 11:55 am Post subject: Re: Fixed my shot Chrony |
|
Hummmm...Wonder who will win this one...??
_________________ I have one nerve left and yer standin' on it...
DEMOCRACY Two wolves and one sheep voting on what to have for lunch...
LIBERTY A well armed sheep contesting the outcome of the vote... |
|
Back to top |
|
|
DallanC Site Admin
Joined: Jan 18, 2005 Posts: 3572 Location: Utah
|
Posted: Mon Apr 08, 2013 12:11 pm Post subject: Re: Fixed my shot Chrony |
|
TRBLSHTR wrote: |
...but I did'nt like the opticle sensor rods(aluminum)so I changed to wooden dowels-just in case I was having one of those bad days and might hit the aluminum rod and damage the op-sensor... |
I use a couple wood shisk-a-bob skewers over the metal rods, "just in case".
-DallanC
|
|
Back to top |
|
|
gelandangan Super Member
Joined: May 07, 2006 Posts: 6397 Location: Sydney Australia
|
Posted: Mon Apr 08, 2013 2:24 pm Post subject: Re: Fixed my shot Chrony |
|
grey_ghost wrote: |
Thanks.
Can you lookup at exact marking ? Memory capacity is still unknown.
|
I have to find time to dismantle mine, will post a better image once I do.
Quote:: |
EEPROM can be used as storage for device configuration. |
It could be, but I sincerely doubt it.
Short of taping the I/O to watch the traffic, I wouldn't know exactly.
Good luck mate, please post your findings so others could benefit.
_________________ A straight line is the shortest distance between two points.
A smile is the shortest distance between two people.
Do - Not try!
gelandangan.weebly.com/ |
|
Back to top |
|
|
Dimitri Super Member
Joined: Nov 25, 2005 Posts: 5944
|
Posted: Mon Apr 08, 2013 4:40 pm Post subject: Re: Fixed my shot Chrony |
|
Vince wrote: |
Gelan...you are the electronic wizard here mate...would the cost of building a chrono be more than buying a similar unit ready to go? |
One off electronics are expensive as as buying a Holland & Holland Rifle.
At the 50-100 quantity it becomes more reasonable, at 1000 it becomes commercially viable like one of those Turkish double barrelled rifles.
Dimitri
_________________ A thousand hills, but no birds in flight, ten thousand paths, with no people's tracks. A lonely boat, a straw-hatted old man, fishing alone in the cold river snow. |
|
Back to top |
|
|
PaulS Super Member
Joined: Feb 18, 2006 Posts: 4330 Location: South-Eastern Washington - the State
|
Posted: Mon Apr 08, 2013 7:53 pm Post subject: Re: Fixed my shot Chrony |
|
grey_ghost wrote: |
gelandangan wrote: |
Well.. after two weeks I found some time to fix my shot Chrony.
It wasn't damaged as bad as I think.
I will gradually make modification to shot proof it later. |
I have two questions about componetns located at PCB of Shooting Chrony Betta.
What marking has chip located at right bottom corner of PCB ?
What marking has capacitor located near this chip (top left corner of chip) ? |
Grey ghost,
That chip that you have circledat the bottom right looks like it could be a 555 timer chip, but the one that is broken looks like an eprom.
I could be wrong there are other 8 pin ICs out there.
_________________ Paul
__________________
Speer, Lyman, Hodgdon, Sierra, and Hornady = reliable loading data
So and So's pages on the internet = NOT reliable loading data
Always check data against manuals
NEVER exceed maximum listed loads |
|
